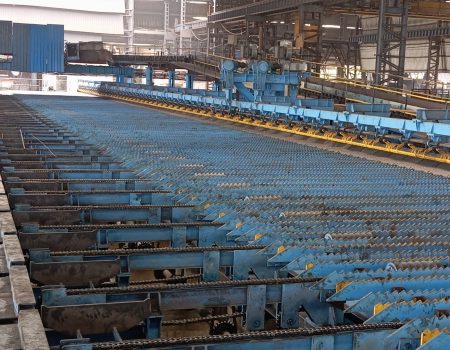

Automatic Cooling Bed
ASPM provides cooling bed that are compact in design and the best in quality. We provide all types of cooling beds as per your mill requirement which can cool the material and cross transfer towards the discharge end. ASPM manufactures Rolling mill Cooling Beds in-house and thus assures the best of quality, these have excellent corrosion resistance which leads to greater durability and sturdy structure.
These are used to cool the material transfer the material towards the discharge end.These are specifically designed for the minimum and maximum size of the bars being rolled into the plant. These cooling beds provide adjust ability to the size of the bars at the appropriate cooling rate and minimized distortion. The cooling beds ensure equipment quality and higher performance levels.
Rake Type
The first part of the system is composed of cast grids, followed in the second part by toothed rakes. Moving rakes supported by beams placed on eccentrics provide transversal advance of bars. In the last toothed area of the rakes, aligning rollers actuated by gear motors make the bars advance against an end stopper so that these result perfectly aligned, ready to be discharged into the chain transfer. The rake drive is provided by means of motors with variable speed.
Turn Over Type
Turn Key Manufacture of Turn-over Cooling Bed inclusive of all Electricals,Drives and Motors.We undertake custom built design & engineering of Turnover Cooling Bed to optimize production & power capacities. Fifth generation In-line Planetary Gear Boxes together with Variable Frequency Synchronous Drives fitted with BOP imparts flexibility to driving arrangement of the Cooling Bed. Starter Web tool provided for drives to be taken online through Computer and necessary programming can be done, if required at a later date.
Fully automated men-less operations from loading till unloading of the bars from Cooling Bed. Necessary interlocking provided for its fail-safe operations & forewarn alarming through Beacon Lamp.
Drive shafts and moving platform is balanced that results in power saving. Current drawn by main motors can be viewed through HMI placed on control desk.
